Name: Ubiquiti UniFi Switch Pro XG 24 PoE 10GbE 2.5GbE PoE++ 720W
Brand: Ubiquiti
SKU: USW-PRO-XG24P
Price: 43695.00 ZAR
Availability: InStock

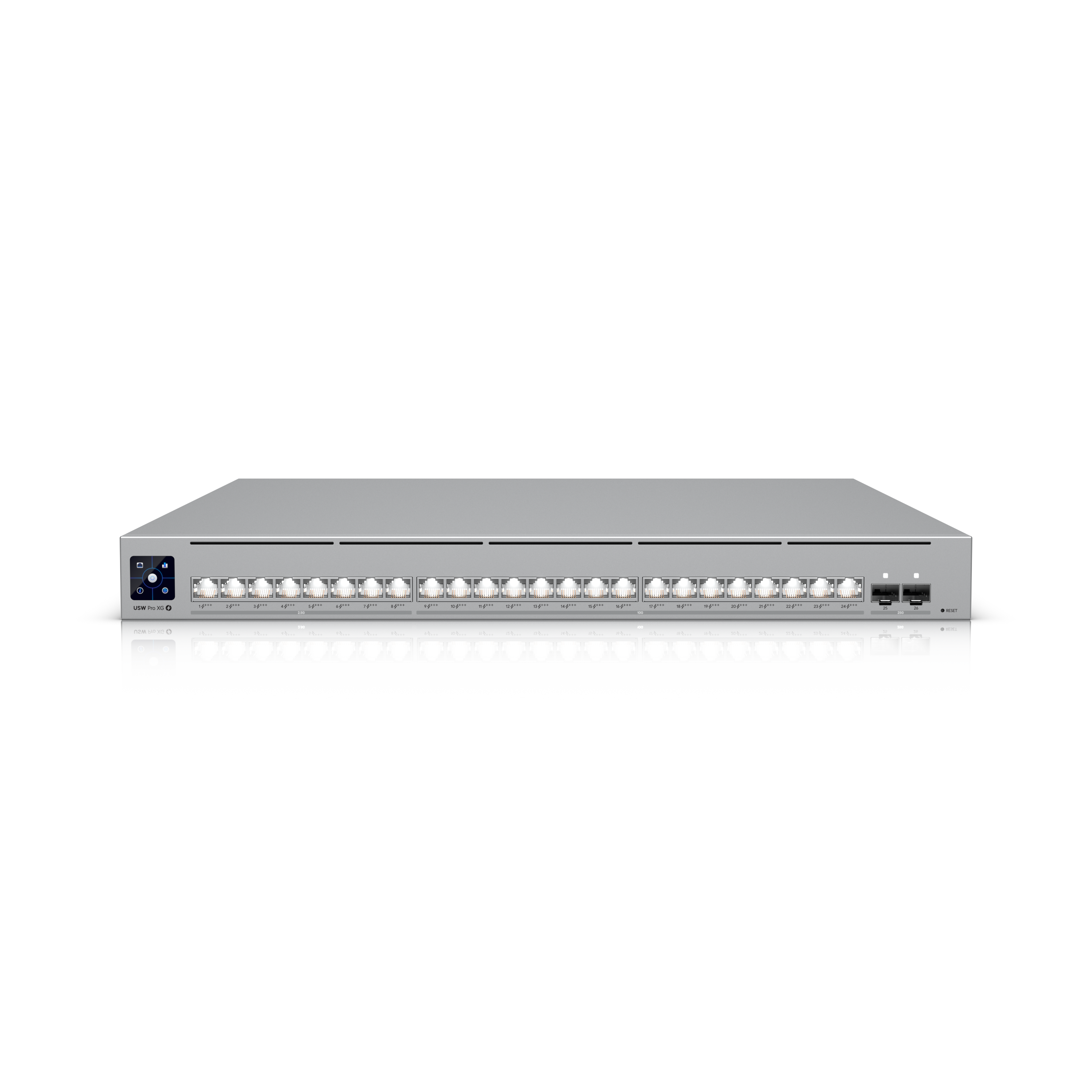

Ubiquiti UniFi Switch Pro XG 24 PoE 10GbE 2.5GbE PoE++ 720W

0 /5.0 (0 reviews)

SKU USW-PRO-XG24P

The PoE version of the Pro XG 24, with all 24 RJ45 ports able to deliver up to 90W PoE+++. It powers WiFi 7 access points, PTZ cameras and other high-draw devices from a 720W budget.

Key features

16 x 10 GbE and 8 x 2.5 GbE ports, all PoE+++
720W total PoE budget, up to 90W per port
2 x 25G SFP28 uplinks
Layer 3 routing with Etherlighting
Redundant power with UniFi RPS

Specifications

Dimensions	442 x 480 x 44 mm; (17.4 x 18.9 x 1.7")
Port Layout (2.5 GbE RJ45)	8 (All PoE+++); (2.5G/1G/100M/10M) (10/100M half-duplex not supported)
Port Layout (10 GbE RJ45)	16 (All PoE+++); (10G/5G/2.5G/1G/100M/10M) (10/100M half-duplex not supported)
Port Layout (25G SFP28)	2; (25G/10G/1G)
Max. PoE Output	Up to PoE+++ (802.3bt Type 4, Class 8)
Total PoE Availability	720W
Redundancy	DC Power Backup (With UniFi RPS)
Form Factor	Rack mount (1U)
Switching Capacity	460 Gbps
Total Non-Blocking Throughput	230 Gbps
Supported VLANs	1,000
MAC Address Table Size	32,000
PoE Ports (PoE+++)	24
Max. PoE Wattage per Port by PSE (PoE)	15.4W
Max. PoE Wattage per Port by PSE (PoE+)	30W
Max. PoE Wattage per Port by PSE (PoE++)	60W
Max. PoE Wattage per Port by PSE (PoE+++)	90W
Max. Power Consumption	150W (Excluding PoE Output); 870W (Including PoE Output)
