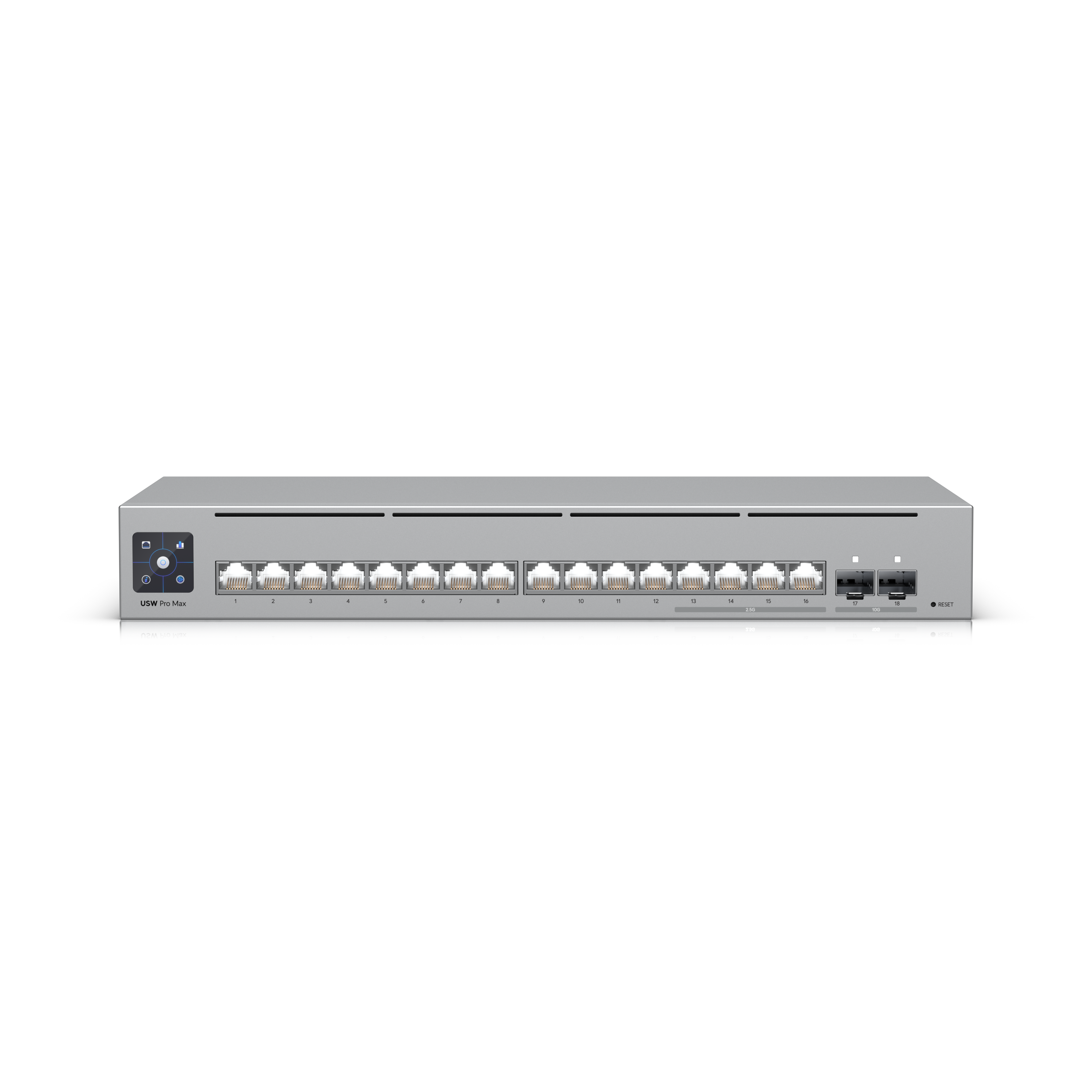

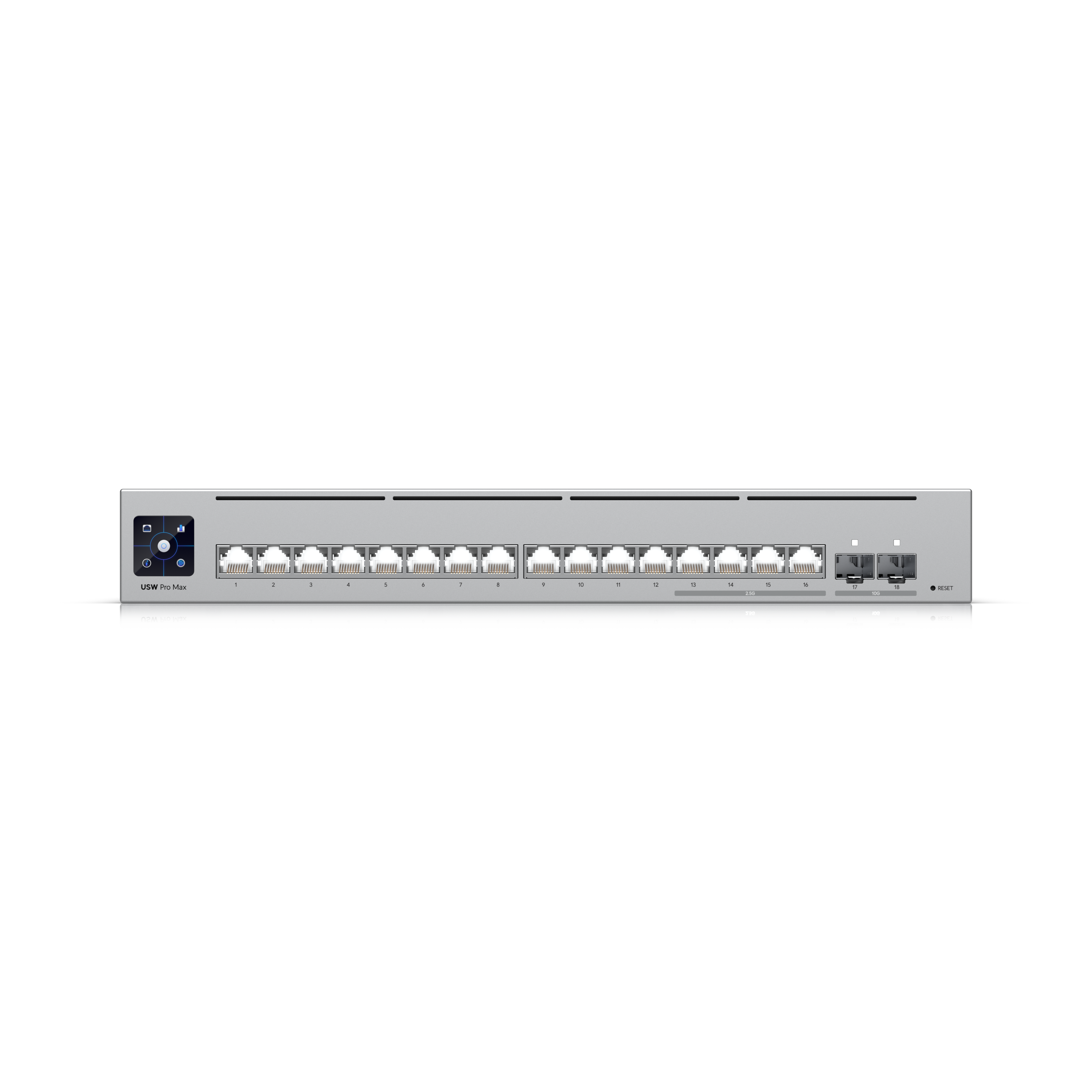

Name: Ubiquiti UniFi Switch Pro Max 16 Layer 3 12x GbE 4x 2.5GbE 2x SFP+
Brand: Ubiquiti
SKU: USW-PRO-MAX16
Price: 6775.00 ZAR
Availability: InStock

Ubiquiti UniFi Switch Pro Max 16 Layer 3 12x GbE 4x 2.5GbE 2x SFP+

0 /5.0 (0 reviews)

SKU USW-PRO-MAX16

A compact 16-port Layer 3 switch with four 2.5 GbE ports for WiFi 7 access points and two 10G SFP+ uplinks. It sits on a desk, mounts on a wall or goes in a rack with the optional rack kit.

Key features

12 x GbE and 4 x 2.5 GbE RJ45 ports
2 x 10G SFP+ uplinks
Layer 3 routing with Etherlighting
84 Gbps switching capacity
Desktop, wall or rack mount (rack kit sold separately)

Specifications

Dimensions	325.1 x 160 x 43.7 mm; (12.8 x 6.3 x 1.7")
Port Layout (1 GbE RJ45)	12; (1G/100M/10M)
Port Layout (2.5 GbE RJ45)	4; (2.5G/1G/100M/10M)
Port Layout (10G SFP+)	2; (10G/1G)
Form Factor	Rack mount (1U), desktop, wall (1U rack-mounting requires add-on Rack Mount accessory)
Switching Capacity	84 Gbps
Total Non-Blocking Throughput	42 Gbps
Supported VLANs	1,000
MAC Address Table Size	16,000
Max. Power Consumption	25W
Power Method	AC/DC Adapter (included)
Power Supply	AC/DC, external, 25W
Weight	1.95 kg (4.3 lb)
Enclosure Material	SGCC steel
LCM Display	1.3" touchscreen
Ambient Operating Temperature	-5 to 40° C (23 to 104° F)
Certifications	CE, FCC, IC, Anatel: 08953-24-08356
