Name: MSI X670E Gaming Plus WiFi AMD AM5 ATX Motherboard
Brand: MSI
SKU: X670E GAMING PLUS WIFI
Price: 6239.00 ZAR
Availability: InStock

MSI X670E Gaming Plus WiFi AMD AM5 ATX Motherboard

Brand MSI

0 /5.0 (0 reviews)

SKU X670E GAMING PLUS WIFI

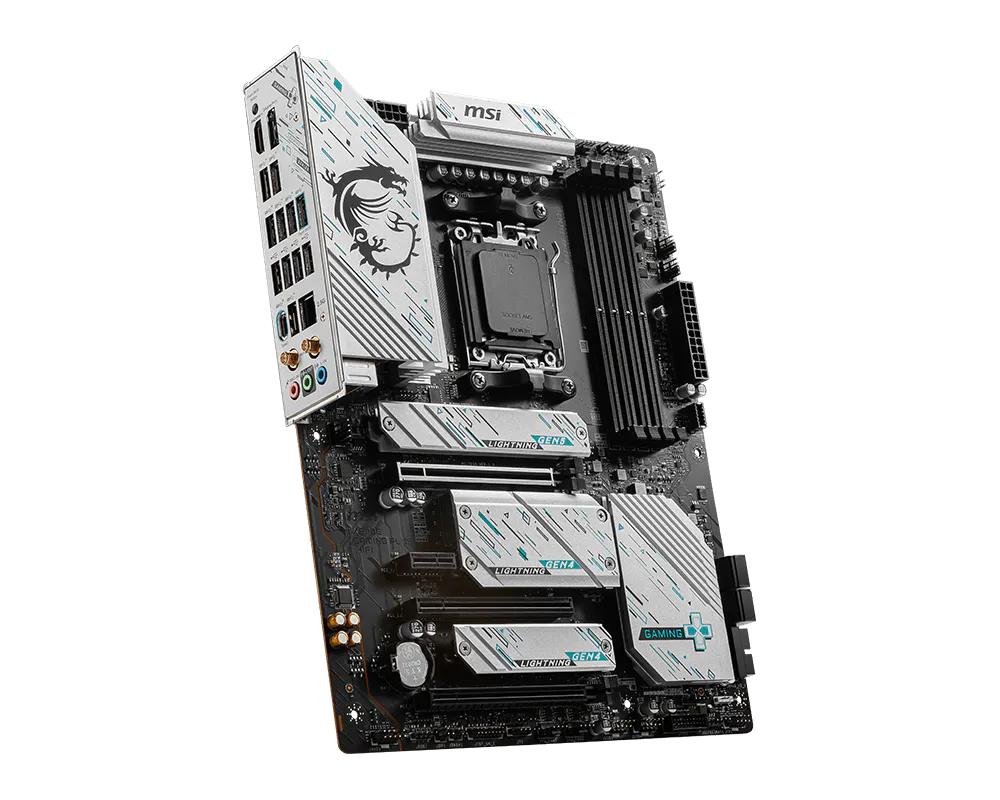

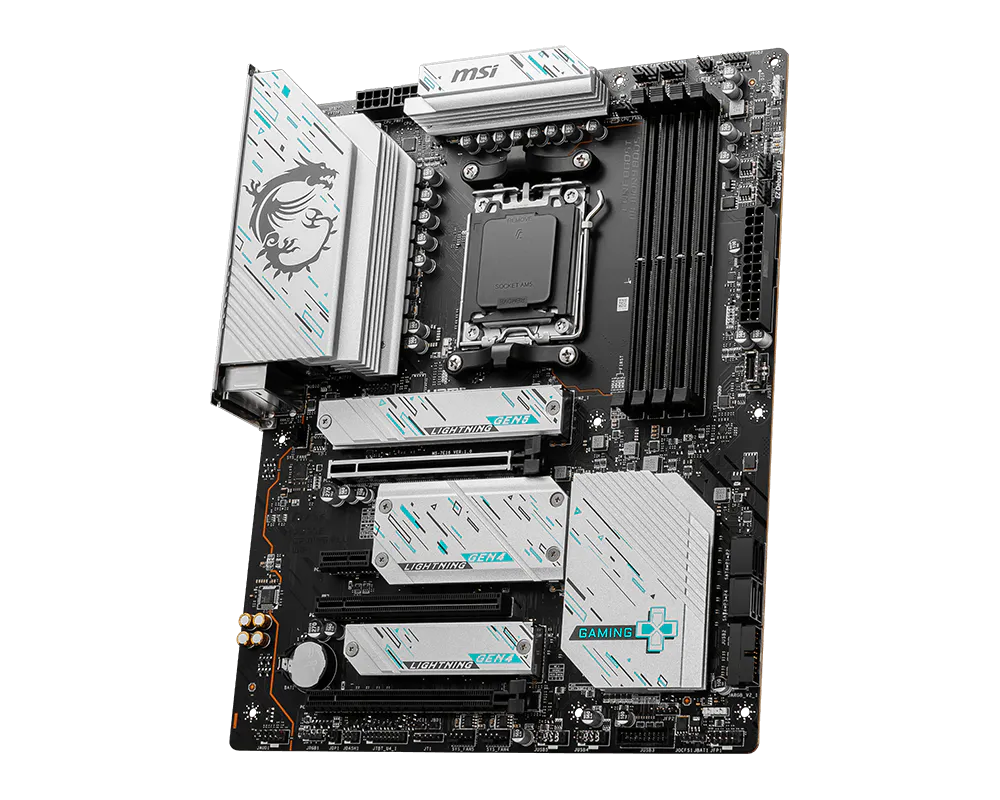

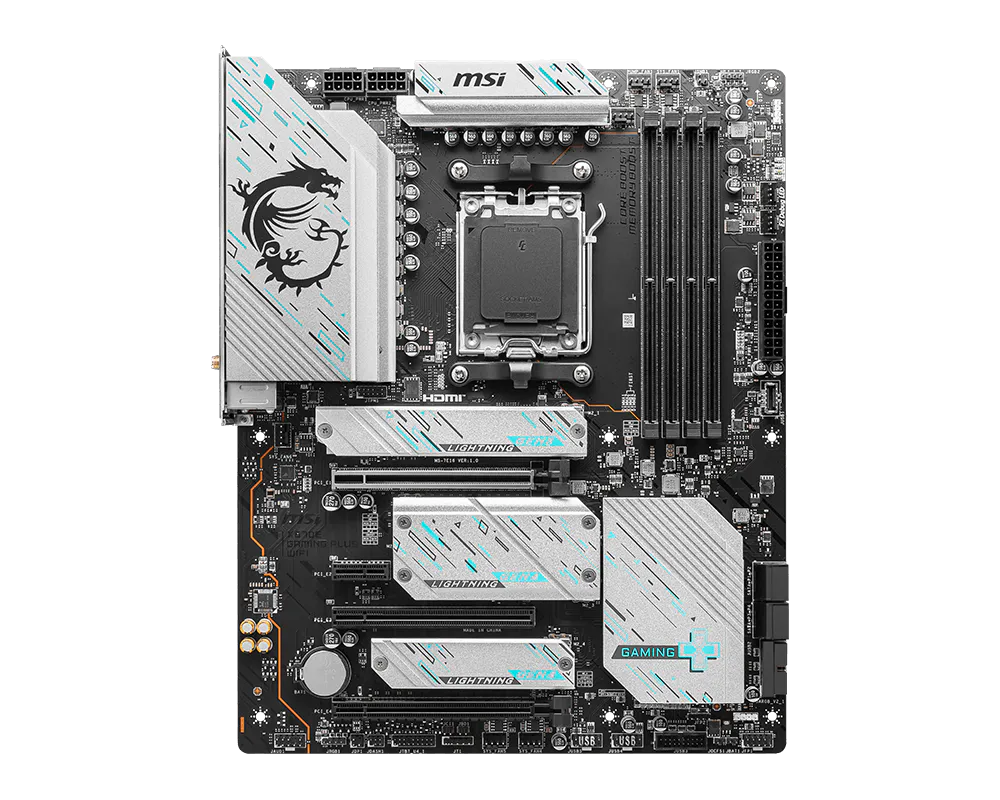

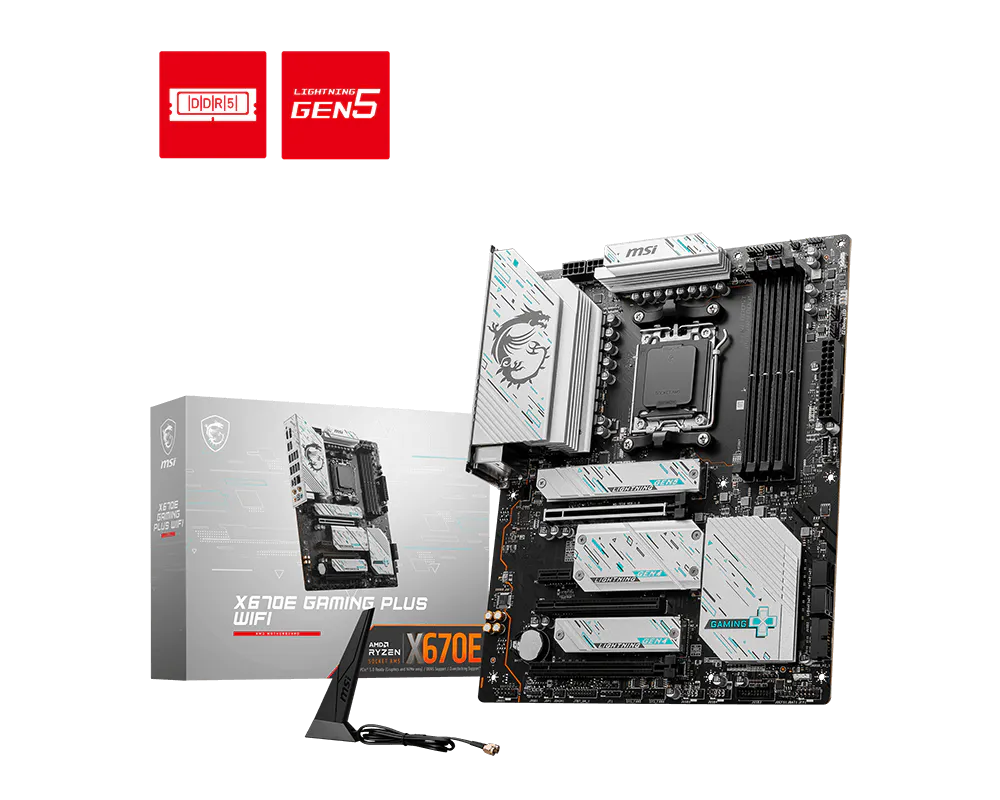

The MSI X670E Gaming Plus WiFi is an ATX X670E board for AMD Ryzen 9000, 8000 and 7000 processors with PCIe 5.0 graphics and storage, four M.2 slots and Wi-Fi 6E. It uses the X670E chipset and the AM5 socket.

Key features

Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors
4x DDR5 UDIMM, Maximum Memory Capacity 256GB
4x M.2 slots plus 4x SATA 6G
Realtek RTL8125BG 2.5Gbps LAN and AMD Wi-Fi 6E
ATX form factor (243.84mmx304.8mm)

Specifications

Chipset	AMD X670E
CPU support	Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors
Socket	AM5
Memory	4x DDR5 UDIMM, Maximum Memory Capacity 256GB
Memory support	DDR5 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MT/s
Expansion slots	3x PCI-E x16 slot; PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU); PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset); PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset); PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset)
Storage	4x M.2; M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devices; M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices; M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices; M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices; 4x SATA 6G
Onboard graphics outputs	1x HDMI, 1x DisplayPort
USB	4x USB 2.0 (Rear); 4x USB 2.0 (Front); 4x USB 5Gbps Type A (Rear); 4x USB 5Gbps Type A (Front); 3x USB 10Gbps Type A (Rear); 1x USB 10Gbps Type C (Front); 1x USB 20Gbps Type C (Rear)
LAN	Realtek RTL8125BG 2.5Gbps LAN
Wireless	AMD Wi-Fi 6E
Audio	Realtek ALC897 Codec; 7.1-Channel High Definition Audio
Form factor	ATX 243.84mmx304.8mm
