Name: MSI PRO H610M-S DDR4 Intel LGA1700 Micro-ATX Motherboard
Brand: MSI
SKU: H610M-S DDR4
Price: 1629.00 ZAR
Availability: OutOfStock

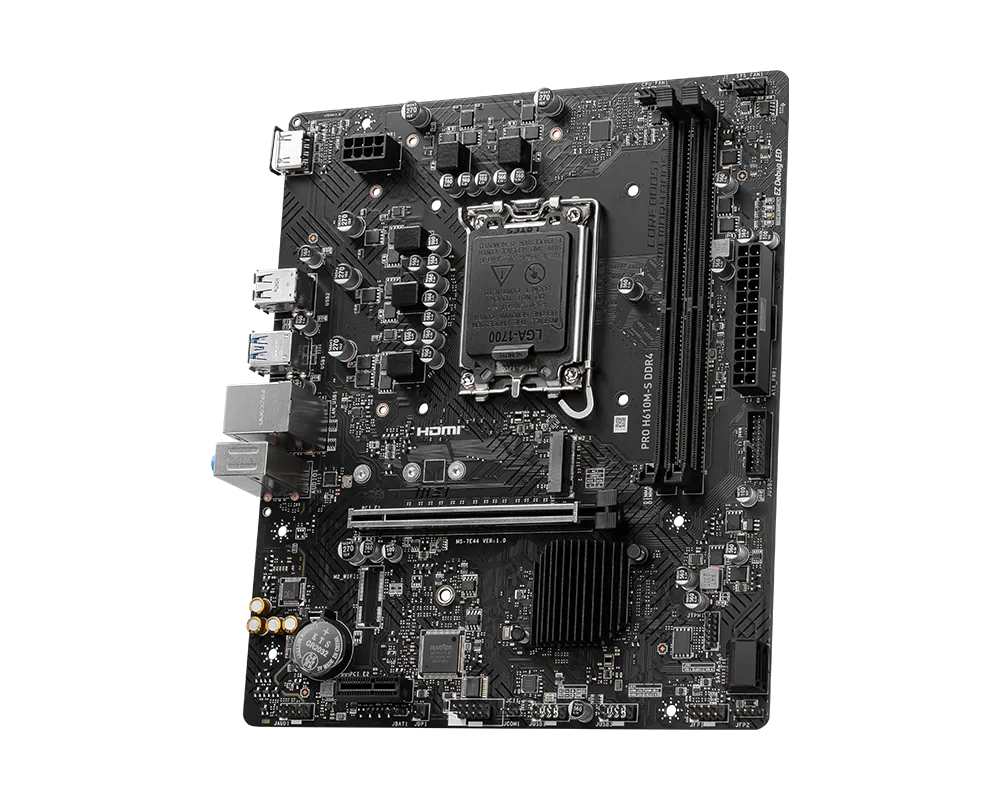

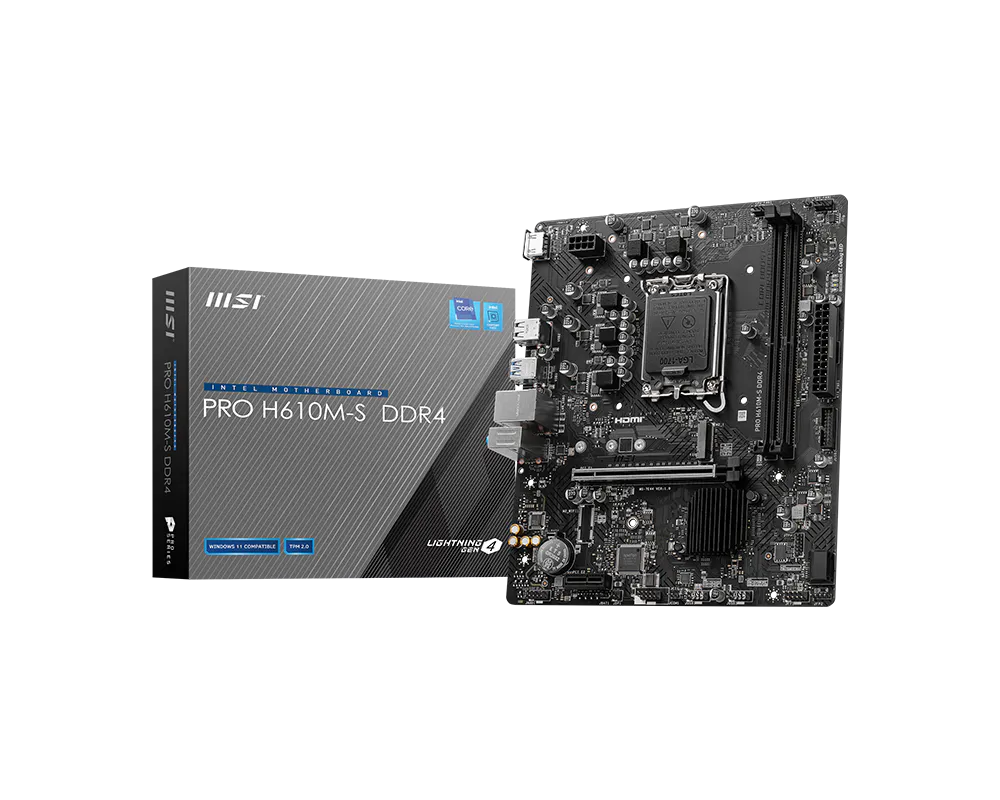

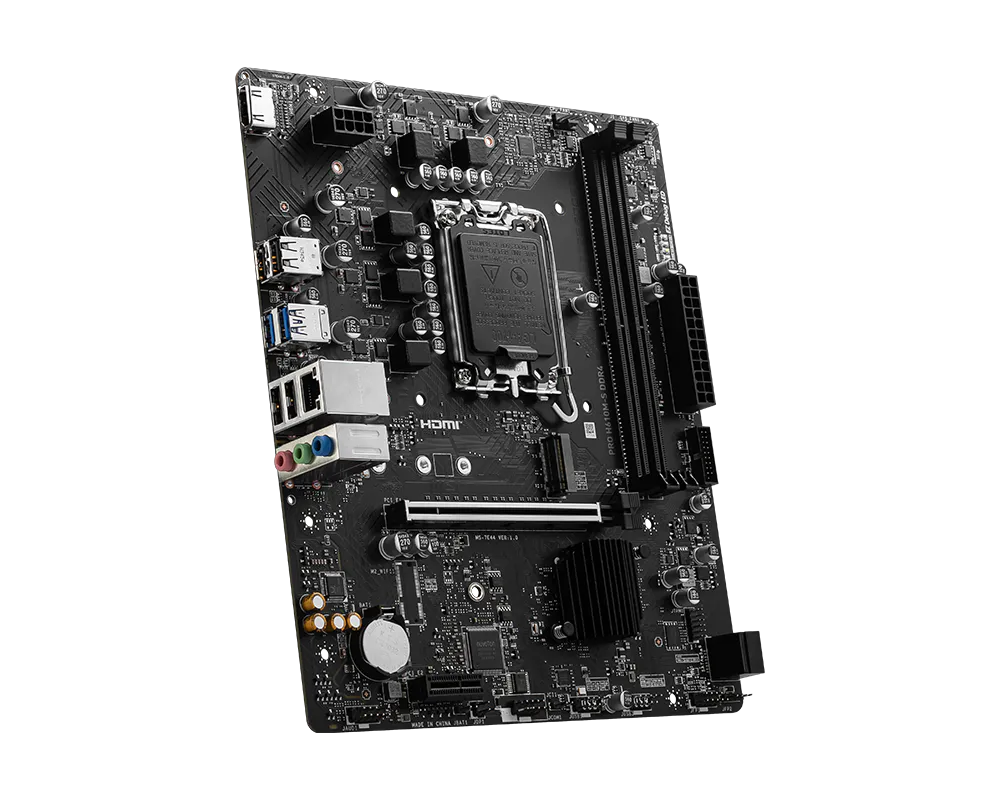

MSI PRO H610M-S DDR4 Intel LGA1700 Micro-ATX Motherboard

Brand MSI

0 /5.0 (0 reviews)

SKU H610M-S DDR4

The MSI PRO H610M-S DDR4 is an entry-level Micro-ATX board for 12th, 13th and 14th Gen Intel Core builds using DDR4 memory. It uses the H610 chipset and the LGA 1700 socket.

Key features

Supports Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors
2x DDR4, Maximum Memory Capacity 64GB
1x M.2 slot plus 2x SATA 6G
Realtek RTL8111H Gigabit LAN
mATX form factor (200mmx236.16mm)

Specifications

Chipset	Intel H610
CPU support	Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors
Socket	LGA 1700
Memory	2x DDR4, Maximum Memory Capacity 64GB
Memory support	DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC
Expansion slots	1x PCI-E x16 slot; PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU); PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset); 1x PCI-E x1 slot
Storage	1x M.2; M.2_1 Source (From Chipset) supports up to PCIe 3.0 x4 , supports 2280/2260/2242 devices; 2x SATA 6G
Onboard graphics outputs	1x HDMI
USB	4x USB 2.0 (Rear); 4x USB 2.0 (Front); 2x USB 5Gbps Type A (Rear); 2x USB 5Gbps Type A (Front)
LAN	Realtek RTL8111H Gigabit LAN
Audio	Realtek ALC897 Codec; 7.1-Channel High Definition Audio
Form factor	mATX 200mmx236.16mm
