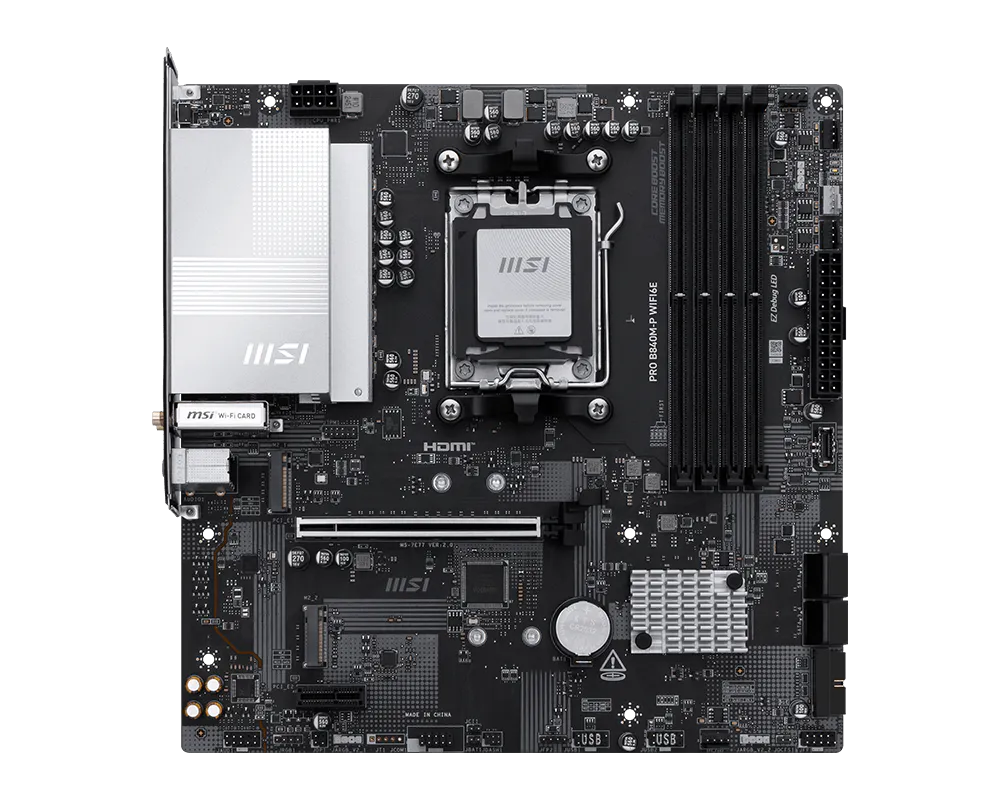

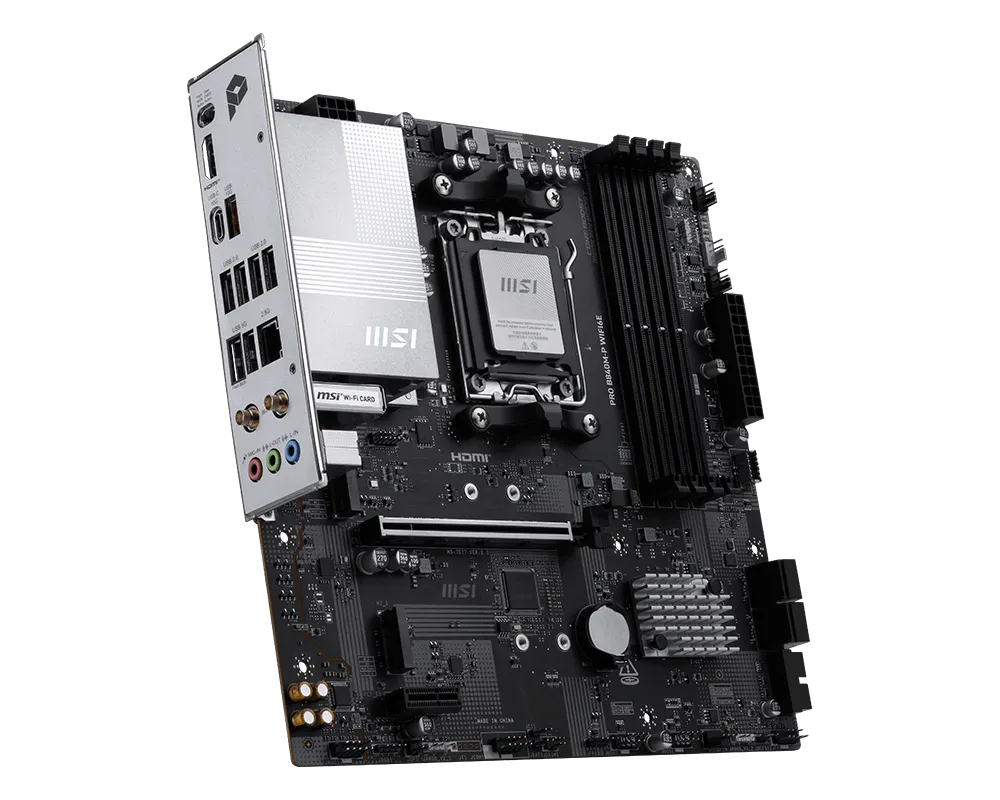

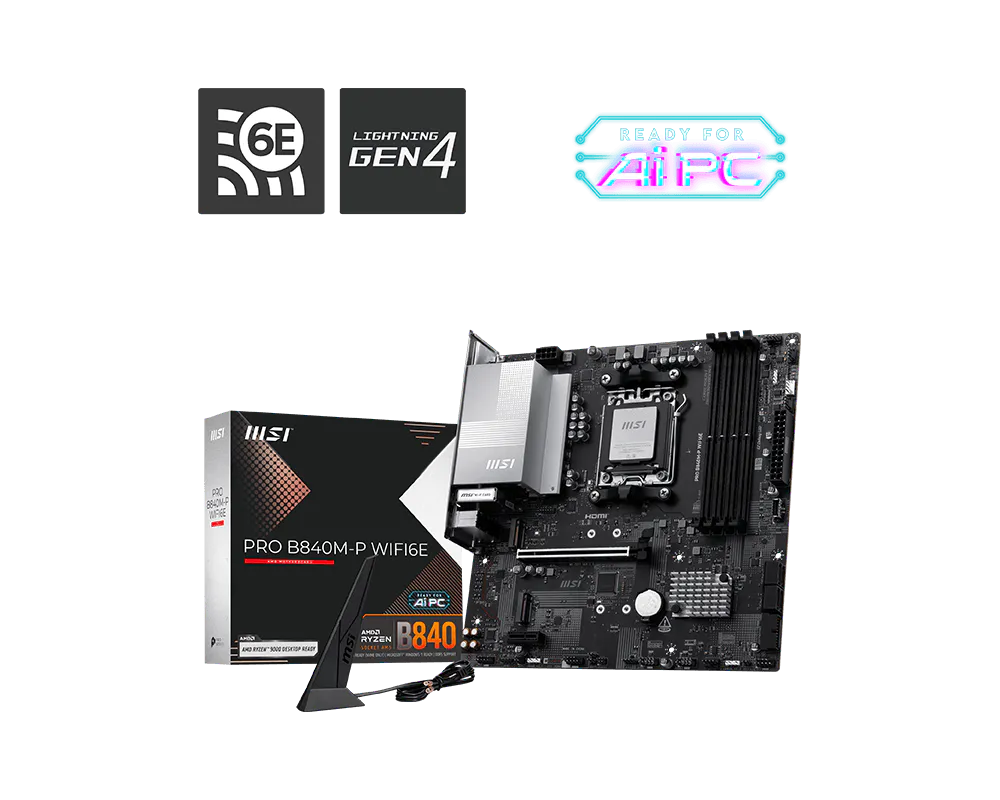

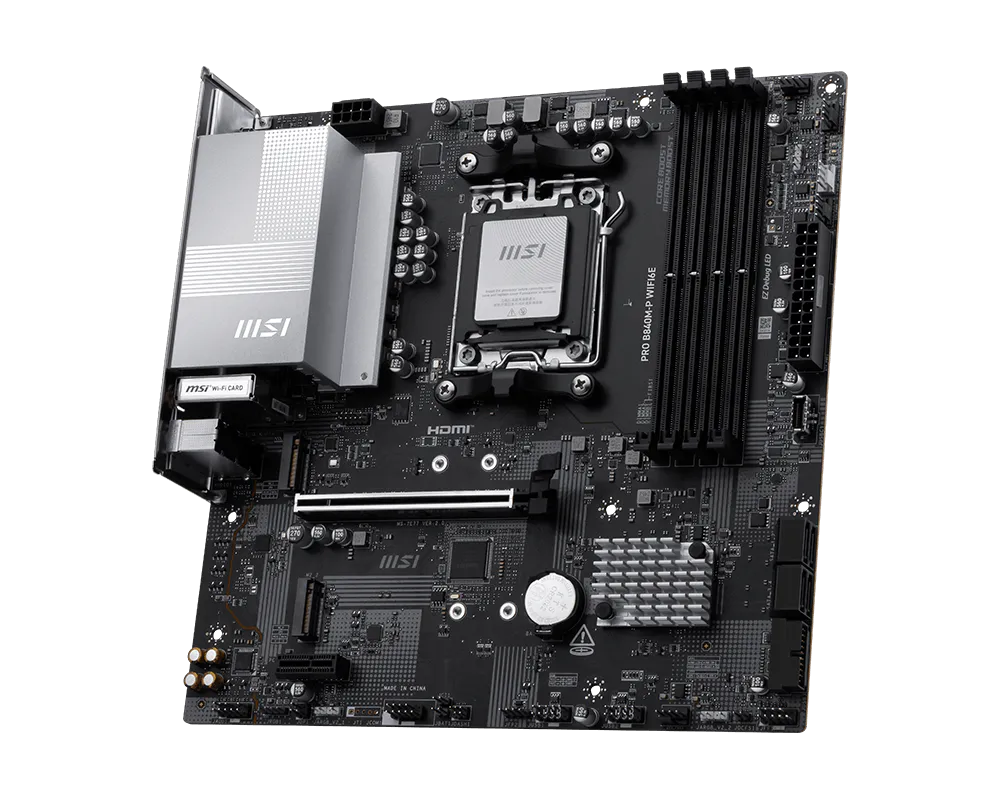

Name: MSI PRO B840M-P WiFi 6E AMD AM5 Micro-ATX Motherboard
Brand: MSI
SKU: PRO B840M-P WIFI6E
Price: 3479.00 ZAR
Availability: OutOfStock

MSI PRO B840M-P WiFi 6E AMD AM5 Micro-ATX Motherboard

Brand MSI

0 /5.0 (0 reviews)

SKU PRO B840M-P WIFI6E

The MSI PRO B840M-P WiFi 6E is a Micro-ATX AM5 board for AMD Ryzen 9000, 8000 and 7000 desktop processors with Wi-Fi 6E and 2.5G LAN. It uses the B840 chipset and the AM5 socket.

Key features

Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors
4x DDR5 UDIMM, Maximum Memory Capacity 256GB
2x M.2 slots plus 4x SATA 6G
Realtek 8125D 2.5G LAN and Wi-Fi 6E
mATX form factor (243.84mmx243.84mm)

Specifications

Chipset	AMD B840
CPU support	Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors
Socket	AM5
Memory	4x DDR5 UDIMM, Maximum Memory Capacity 256GB
Memory support	DDR5 8000 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s
Expansion slots	1x PCI-E x16 slot; PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU); PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset); 1x PCI-E x1 slot
Storage	2x M.2; M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices; M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices; 4x SATA 6G
Onboard graphics outputs	1x HDMI
USB	4x USB 2.0 (Rear); 4x USB 2.0 (Front); 2x USB 5Gbps Type A (Rear); 2x USB 5Gbps Type A (Front); 1x USB 5Gbps Type C (Front); 1x USB 10Gbps Type A (Rear); 1x USB 10Gbps Type C (Rear)
LAN	Realtek 8125D 2.5G LAN
Wireless	Wi-Fi 6E
Audio	Realtek ALC897; 7.1-Channel High Definition Audio
Form factor	mATX 243.84mmx243.84mm
