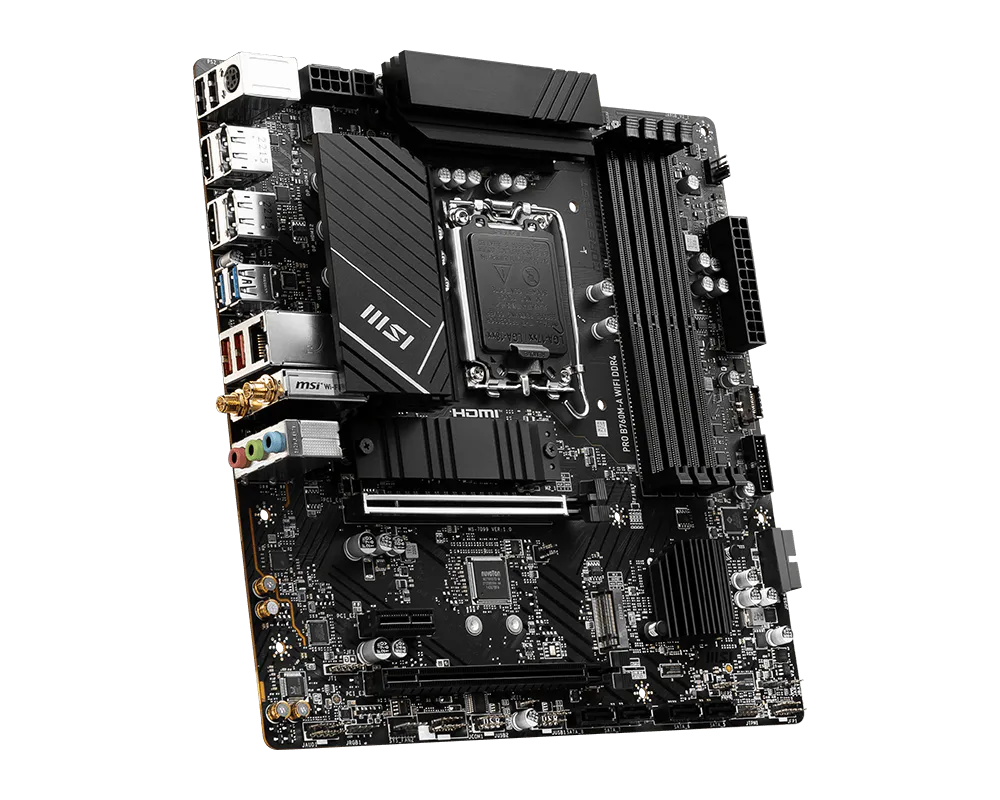

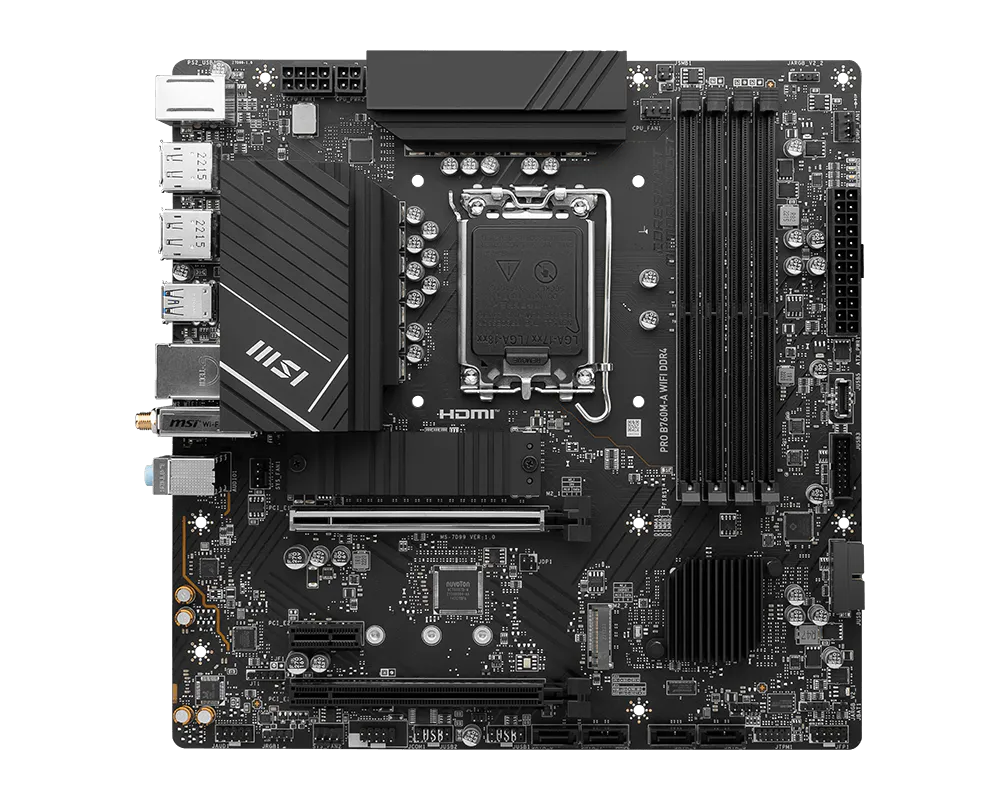

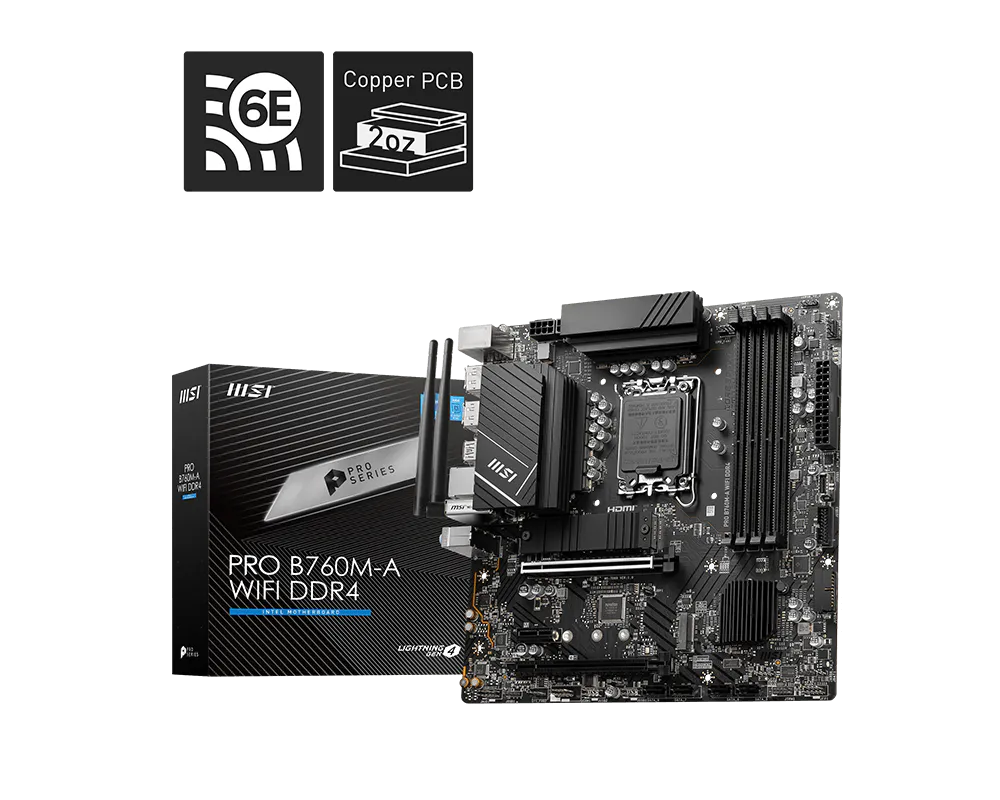

Name: MSI PRO B760M-A WIFI DDR4 Micro-ATX Motherboard, Intel B760, Wi-Fi 6E, LGA1700
Brand: MSI
SKU: B760M-A WIFI DDR4
Price: 3919.00 ZAR
Availability: InStock

MSI PRO B760M-A WIFI DDR4 Micro-ATX Motherboard, Intel B760, Wi-Fi 6E, LGA1700

Brand MSI

0 /5.0 (0 reviews)

SKU B760M-A WIFI DDR4

The MSI PRO B760M-A WIFI DDR4 is a Micro-ATX board for 12th to 14th Gen Intel processors with four DDR4 slots, two M.2 slots, 2.5G LAN and Wi-Fi 6E. It is a well-rounded choice for a home or office build that reuses DDR4 memory.

Key features

Supports Intel Core 14th, 13th and 12th Gen on LGA1700
4x DDR4 slots, up to 128 GB, up to 5333+ MHz (OC)
2x M.2 slots (PCIe 4.0 x4) and 4x SATA 6G
Wi-Fi 6E and Bluetooth 5.3 built in
Realtek 2.5G LAN
2x HDMI 2.1 and 2x DisplayPort 1.4 outputs

Specifications

Brand	MSI
Model	PRO B760M-A WIFI DDR4
Chipset	Intel B760
Socket	LGA1700
Memory	4x DDR4, max 128 GB, dual channel, up to 5333+ MHz (OC)
Expansion	2x PCIe x16 (PCIe 4.0 x16 from CPU, PCIe 4.0 x4), 1x PCIe 3.0 x1
Storage	2x M.2 (PCIe 4.0 x4), 4x SATA 6G
RAID	RAID 0, 1, 5, 10 (SATA)
USB rear	2x USB 10Gbps Type-A, 2x USB 5Gbps Type-A, 2x USB 2.0
Video out	2x HDMI 2.1, 2x DisplayPort 1.4 (4K 60Hz)
LAN	Realtek RTL8125BG 2.5G
Wireless	Wi-Fi 6E, Bluetooth 5.3
Audio	Realtek ALC897, 7.1 channel
Form factor	mATX, 243.84 x 243.84 mm
