Name: MSI MAG B860M Mortar WiFi Intel LGA1851 Micro-ATX Motherboard
Brand: MSI
SKU: B860M MORTAR WIFI
Price: 5799.00 ZAR
Availability: InStock

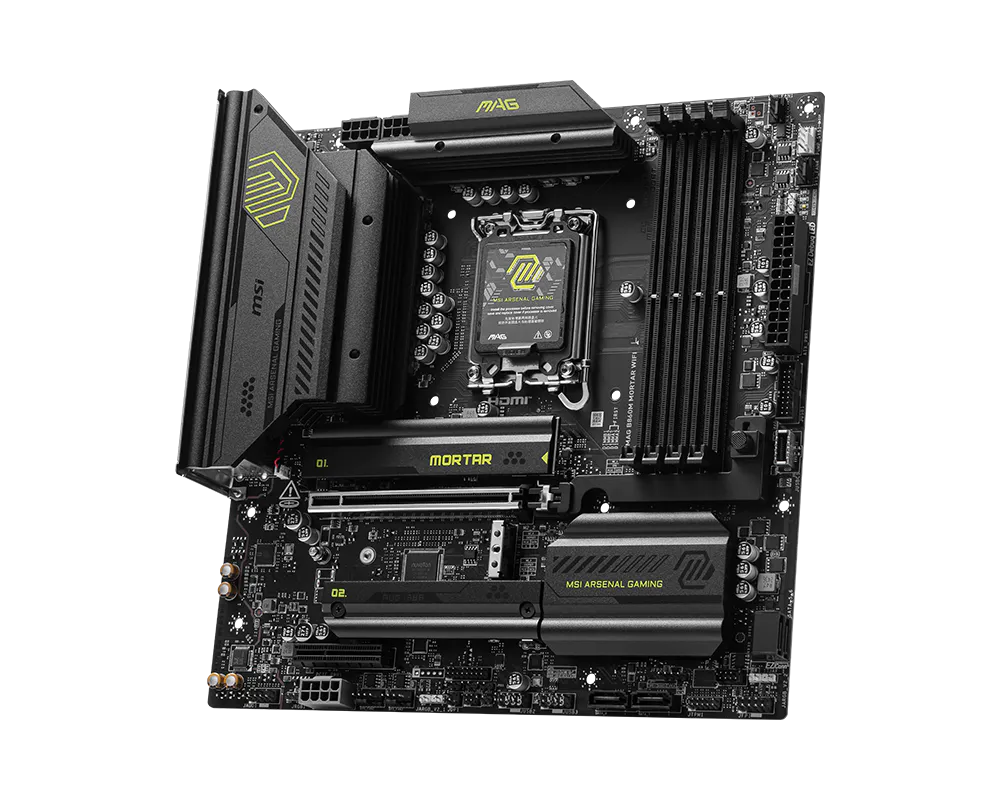

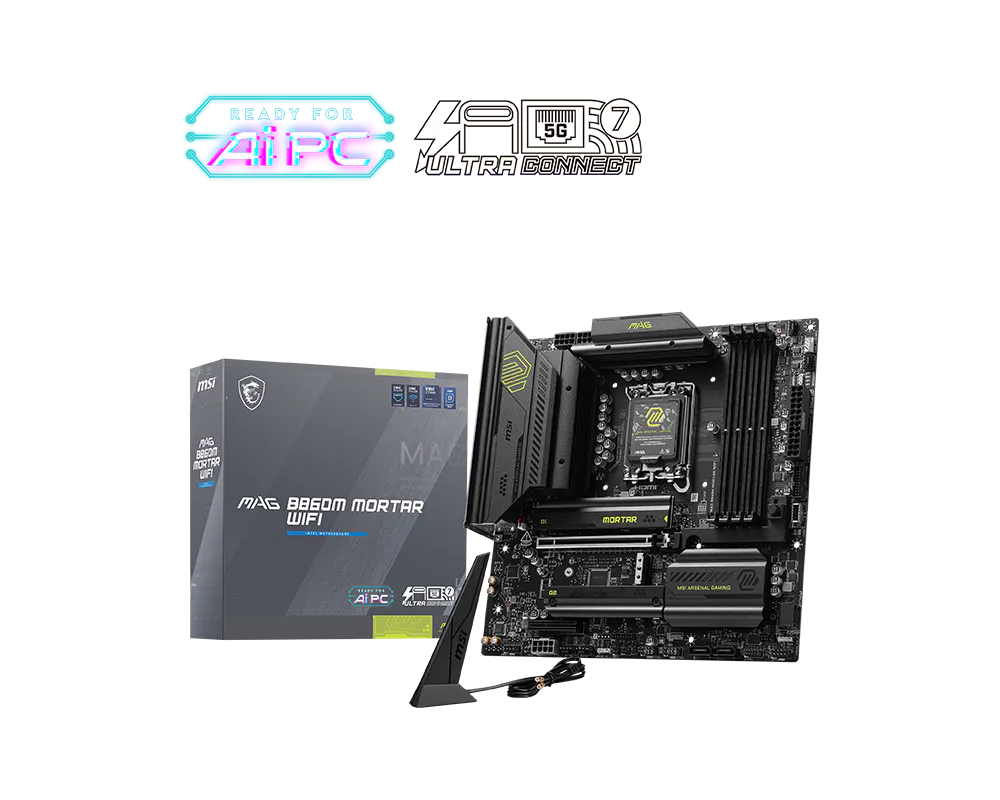

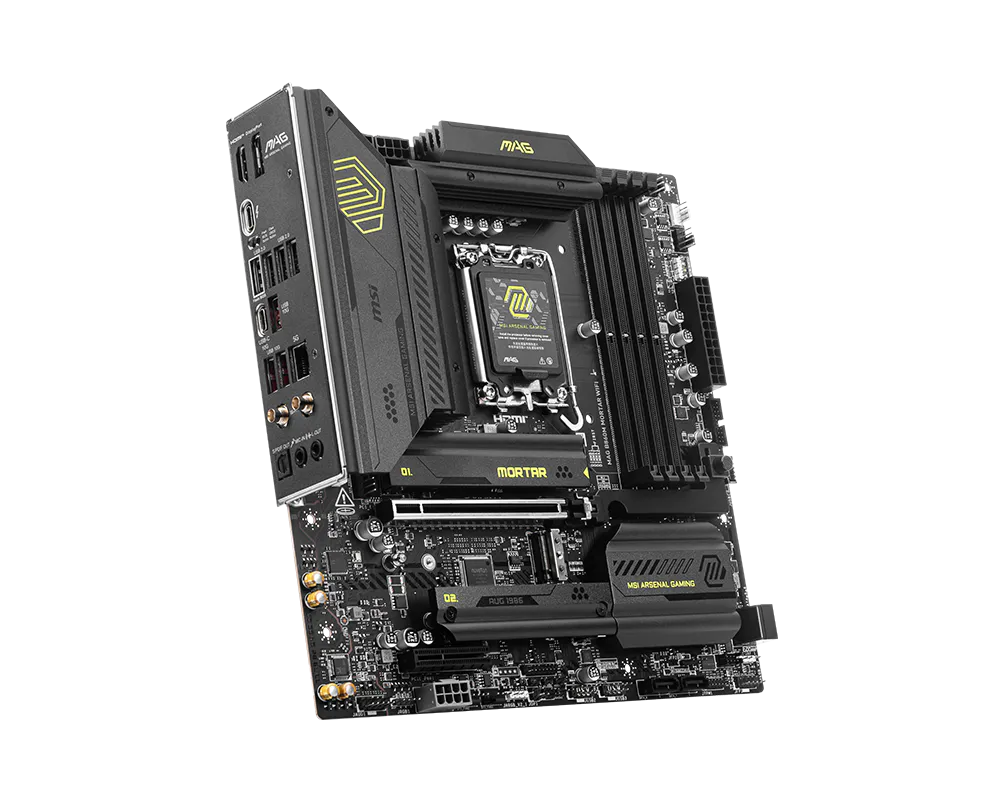

MSI MAG B860M Mortar WiFi Intel LGA1851 Micro-ATX Motherboard

Brand MSI

0 /5.0 (0 reviews)

SKU B860M MORTAR WIFI

The MSI MAG B860M Mortar WiFi is a Micro-ATX board for Intel Core Ultra (Series 2) processors with Wi-Fi 7, 5G LAN and three M.2 slots. It uses the B860 chipset and the LGA 1851 socket.

Key features

Supports Intel Core Ultra Processors (Series 2)
4x DDR5 UDIMM, Maximum Memory Capacity 256GB
3x M.2 slots plus 4x SATA 6G
Intel Killer E5000 5Gbps LAN and Intel Killer BE1750x Wi-Fi 7
mATX form factor (243.84mmx243.84mm)

Specifications

Chipset	Intel B860
CPU support	Supports Intel Core Ultra Processors (Series 2)
Socket	LGA 1851
Memory	4x DDR5 UDIMM, Maximum Memory Capacity 256GB
Memory support	9200 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s
Expansion slots	1x PCI-E x16 slot; PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU); PCI_E2 Gen PCIe 4.0 supports up to x4 (From Chipset); 1x PCI-E x4 slot
Storage	3x M.2; M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260/2242 devices; M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices; M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices; 4x SATA 6G
Onboard graphics outputs	1x HDMI, 1x DisplayPort, 1x Type-C DisplayPort
USB	4x USB 2.0 (Rear); 4x USB 2.0 (Front); 2x USB 5Gbps Type A (Front); 3x USB 10Gbps Type A (Rear); 1x USB 10Gbps Type C (Rear); 1x USB 10Gbps Type C (Front)
LAN	Intel Killer E5000 5Gbps LAN
Wireless	Intel Killer BE1750x Wi-Fi 7
Audio	Realtek ALC897 Codec; 7.1-Channel High Definition Audio
Form factor	mATX 243.84mmx243.84mm
